Wimberley Head® - Specs


	"The Wimberley Head provides unparalleled freedom of movement when working with large telephoto lenses..." -Art Wolfe
		More Wimberley Head Testimonials...
	WH-200 Wimberley Head Version II ($595.00) Download Product Instructions - Product Registration
	Weight: 3.15 lbs (1430 grams) Dimensions: (L x W x H): 9.3" x 3.5" x 9.9" Weight Capacity: >100lbs (45kg) (Compatible with the largest lenses in the industry) Note: The WH-200 has a built-in Arca-Swiss style quick-release clamp. In order to use the head, your lens must be equipped with an Arca-Swiss style lens plate. --Protected by one or more of the following Patents: #7478970 & #7600941--

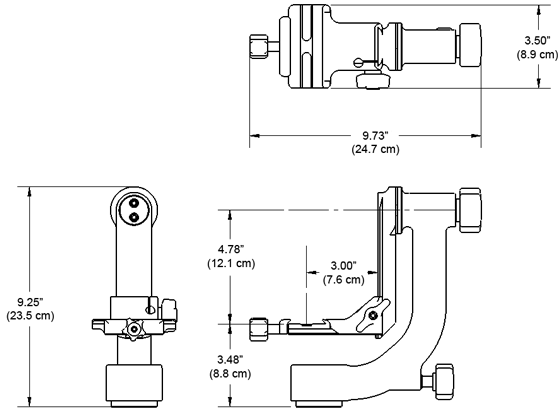

Line drawings of Wimberley Head Version II WH-200 with general dimensions

The "Arca-Swiss Style" Quick-Release Geometry The "Arca-Swiss Style" Quick-Release Geometry refers to the open-cavity dovetail quick-release system developed decades ago by Arca-Swiss for use with their Monoball ball heads and large format cameras. After the extreme popularity of the Arca-Swiss B-1 ball head in the 1990s, other companies began manufacturing custom camera-body and lens plates using this geometry. Since then, this geometry has become the industry standard for high-end tripod heads (particularly in the nature photography industry). The figure below shows the basic dimensions of the dovetail used in this system:

The Wimberley Head Version II, Sidekick, and other clamps use this quick-release system, so any lens that you wish to connect to our heads must be equipped with an Arca-Swiss style lens plate or replacement foot. Manufacturers that use the Arca-Swiss Style Quick-Release Geometry include:
Acratech Arca-Swiss Foba Giottos (only on their most recent line of ball heads & plates) Hejnar Jobu Kirk	Markins Novoflex (only on some of their products) Promediagear Really Right Stuff Studioball Wimberley
