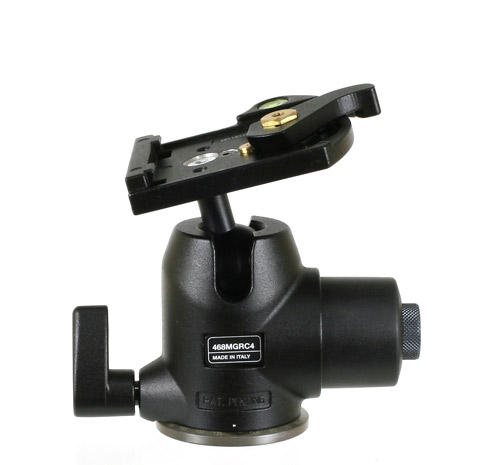

Manfrotto 468MGRC4

(Click on Image to Enlarge)



Wimberley Clamp to Install:

The C-10 MG clamp (2.5" in length) with hardware is used for retrofitting specific models of Manfrotto ball heads.


  Hardware/Tools Included
-Flat Head Screw - M6 X 30mm
-Hex Key - 4 mm (or 5/32)
-Roll Pin - 1/8 dia. X .375 SS
C-10 MG ($79.00)



Retrofit Instructions:

Hardware/Tools not included (customer must provide):
-Hex Key - 2.5 mm
Loosen the smaller screw with a 2.5mm hex key. Remove the clamp's central fastener using the enclosed 4mm hex key. Removal complete

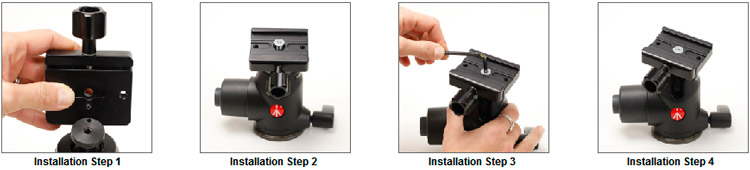

Seat the Wimberley Clamp on top of the ball head stem making sure to align the roll pin on the clamp with the hole on the ball head stem. (Pin will fit inside the hole on the stem.) Insert the enclosed 6mm fastener. Tighten the fastener with the enclosed 4mm hex key. Installation complete
