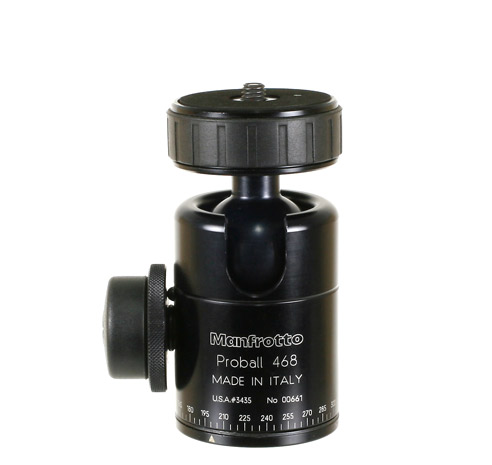

Manfrotto Proball 468

(Click on Image to Enlarge)

Note: On this particular ball head, there is no anti-twisting mechanism (e.g. set screw or pin) to keep our retrofitted clamp from potentially loosening in the field. For more security, we recommend using epoxy or loctite to keep the clamp from twisting. Even with loctite, we do not recommend using this retrofitted clamp with the Sidekick because the particular geometry of the Sidekick puts significant stress on this connection.



Wimberley Clamp to Install:

The C-10 AS clamp (2.5" in length) with hardware is used for retrofitting specific models of Arca Swiss, Cullman, Giottos, and Manfrotto ball heads.



  Hardware/Tools Included
-Flat Head Screw - M6 X 30mm
-Hex Key - 4 mm (or 5/32)

C-10 AS ($79.00)





Retrofit Instructions:

Hardware/Tools not included (customer must provide):
-Hex Key - 2 mm (or 5/64)
Loosen the set screw with the enclosed 4mm hex key. Unscrew the mounting platform by hand. Removal complete

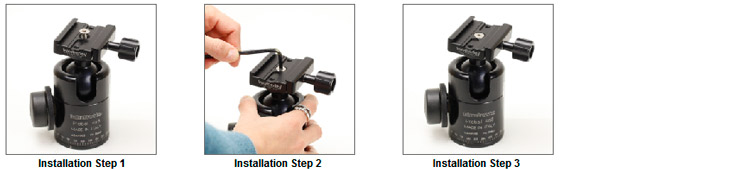

Insert the enclosed 6mm fastener.

Tighten the fastener with the enclosed 4mm hex key. Installation complete
