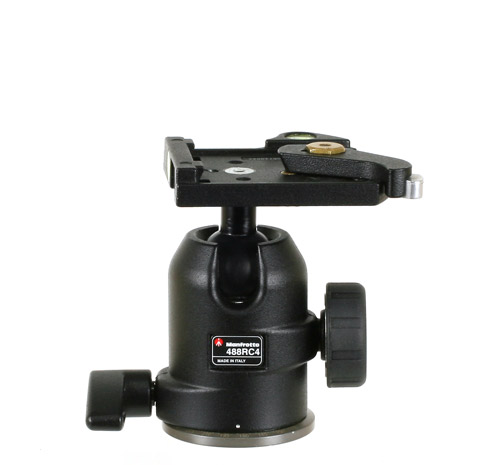

Manfrotto 488RC4

(Click on Image to Enlarge)

Note: On this particular ball head, there is no anti-twisting mechanism (e.g. set screw or pin) to keep our retrofitted clamp from potentially loosening in the field. For more security, we recommend using epoxy or loctite to keep the clamp from twisting. Even with loctite, we do not recommend using this retrofitted clamp with the Sidekick because the particular geometry of the Sidekick puts significant stress on this connection.



Wimberley Clamp to Install:

The C-10 AS clamp (2.5" in length) with hardware is used for retrofitting specific models of Arca Swiss, Cullman, Giottos, and Manfrotto ball heads.



  Hardware/Tools Included
-Flat Head Screw - M6 X 30mm
-Hex Key - 4 mm (or 5/32)

C-10 AS ($79.00)

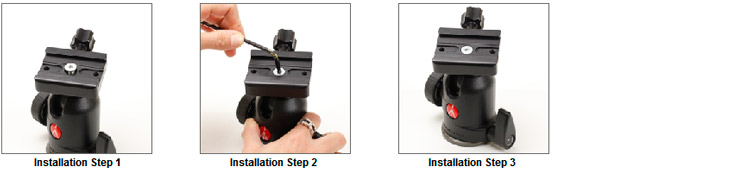

Retrofit Instructions:

Hardware/Tools not included (customer must provide):
-Hex Key - 2.5 mm
Loosen the set screw with a 2.5mm hex key. Remove the clamp's central fastener using the enclosed 4mm hex key. Removal complete
Insert the head's original 6mm fastener (not the longer fastener included with the clamp).

Note: Our fastener is too long and will not work properly.

Tighten the fastener with the enclosed 4mm hex key. Installation complete
