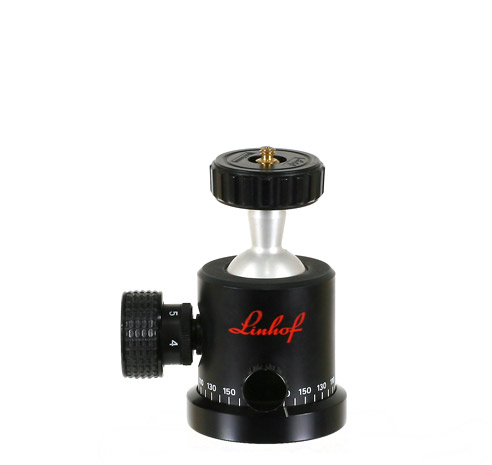

Linhof (Profi II)

(Click on Image to Enlarge)

Note: On this particular ball head, there is no anti-twisting mechanism (e.g. set screw or pin) to keep our retrofitted clamp from potentially loosening in the field. For more security, we recommend using epoxy or loctite to keep the clamp from twisting. Even with loctite, we do not recommend using this retrofitted clamp with the Sidekick because the particular geometry of the Sidekick puts significant stress on this connection.



Wimberley Clamp to Install:



The C-10 GZ clamp (2.5" in length) with hardware is used for retrofitting specific models of Gitzo and Linhof ball heads.



  Hardware/Tools Included
-Set Screw - 3/8 X .75
-Hex Key - 3/16
-Set Screw - 1/4 X .375
-Hex Key - 1/8
C-10 GZ ($79.00)








Retrofit Instructions:

Unscrew the mounting platform by hand. Removal complete

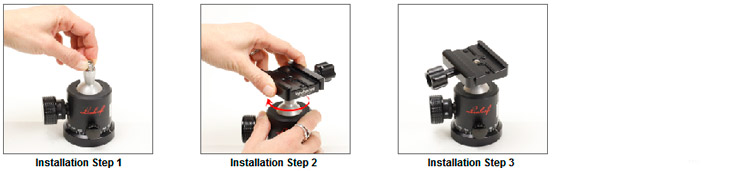

Screw the 3/8 -16 threaded stud into the stem of the ball head until it seats all the way. Screw the quick-release clamp onto the threaded stud as tightly as possible. Installation complete
