Cullmann (40200)

(Click on Image to Enlarge)





Wimberley Clamp to Install:

The C-10 AS clamp (2.5" in length) with hardware is used for retrofitting specific models of Arca Swiss, Cullman, Giottos, and Manfrotto ball heads.



  Hardware/Tools Included
-Flat Head Screw - M6 X 30mm
-Hex Key - 4 mm (or 5/32)

C-10 AS ($79.00)




Retrofit Instructions:

Hardware/Tools not included (customer must provide):
-5mm hex key
-Straight-Blade Screwdriver
-Reducer Bushing - 3/8-16 to M6    (Available through Wimberley - Click Here to Purchase)
Remove the clamp's central fastener using the enclosed 5mm hex key. Removal complete

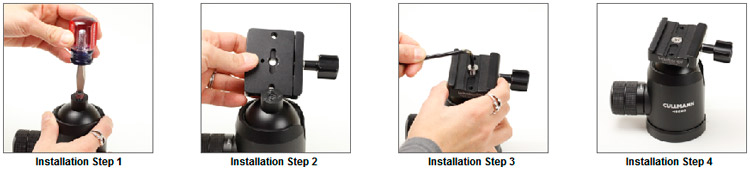

Screw reducer bushing (3/8-16 to M6) into the stem of the clamp using a flat blade screw driver. Seat the Wimberley Clamp on top of the ball head stem making sure to align the groove on the clamp with the raised boss on the ball head stem. Tighten the fastener with the enclosed 4mm hex key. Installation complete
