Wimberley Clamp to Install:

The C-10 AS clamp (2.5" in length) with hardware is used for retrofitting specific models of Arca Swiss, Cullman, Giottos, and Manfrotto ball heads.



  Hardware/Tools Included
-Flat Head Screw - M6 X 30mm
-Hex Key - 4 mm (or 5/32)

C-10 AS ($79.00)


Retrofit Instructions:

Hardware/Tools not included (customer must provide):
-Hex Drive SOCKET - 7/16 (or 11mm) - 1/4" hex drive
-Adjustable Wrench

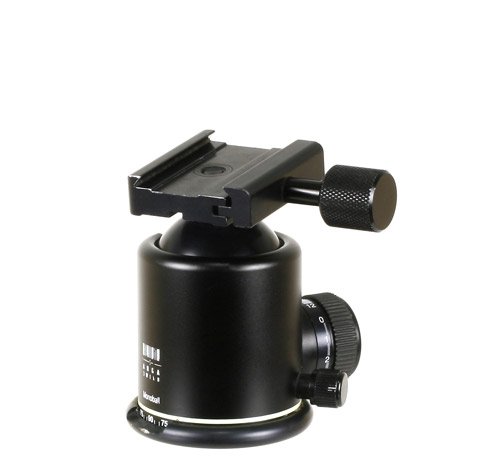

If your B-1 clamp looks like the one in this picture, it is not easily removable. Thus, it cannot be retrofitted with a Wimberley clamp. If your ball head matches the above picture, your clamp is removable. The central fastener has an 11mm hex head that is recessed. Try removing it with an 11mm socket wrench (7/16 socket will also work). Unfortunately, many sockets are too big in diameter to fit in the recessed area around the screw, thus they do not properly engage the head of the screw. We sell a socket that will work (pictured above). The socket that we sell has a 1/4" hex drive. Use an adjustable wrench or similar tool to grasp the 1/4" shaft of the socket and loosten the head's mounting screw.

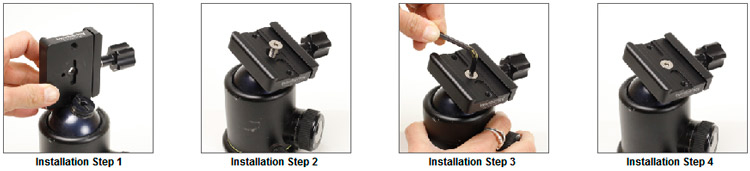

Seat the Wimberley Clamp on top of the ball head stem making sure to align the groove on the clamp with the raised boss on the ball head stem. Insert the enclosed 6mm fastener. Tighten the fastener with the enclosed 4mm hex key. Installation complete
