Arca-Swiss Style Lens Plates


We offer an innovative line of Arca-Swiss style quick-release plates for collared lenses that attach to the foot of your lens. (If ordering just an extra screw or reducer bushing, see our Postal Service shipping policy.)



P-10
($52.00)


    P-20
    ($52.00)




      P-30
      ($55.00)



              P-40*
              ($58.00)



                    P-50*
                  ($58.00)

Wimberley SW-100 Lens Plate Screw
SW-100
Extra Screw
($1.00)
Wimberley BS-100 Brass Reducer Bushing
BS-100*
3/8" to 1/4" Brass Reducer Bushing
($3.00)

* The P-40 and P-50 lens plates come with one complimentary brass bushing. If your lens foot has more than one 3/8" mounting hole, you may wish to purchase an additional bushing in order to mount the lens plate or in case of loss or damage.  Number of screws shown in images come preinstalled.  For full list of package contents, visit the Specs Tab below.




P-50
P-40
P-30
P-20
P-10

Mounting Screws

3 screws
3 screws
2 screws
2 screws
2 screws
Anti-Twist Nubs

No

No

Yes

Yes

Yes

Brass Reducer Bushing

Yes

Yes

No

No

No

Weight

4.8 Oz
(136 gm)

(plate, mounting screws, stop screws)

4.5 Oz
(127.5 gm)

(plate, mounting screws, stop screws)

3.2 Oz
(91 gm)

(plate, mounting screws, stop screws)

2.7 Oz
(76.5 gm)

(plate, mounting screws, stop screws)

2.3 Oz
(65 gm)

(plate, mounting screws, stop screws)

Dimensions

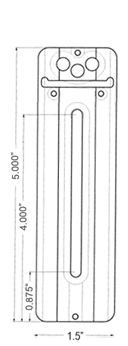

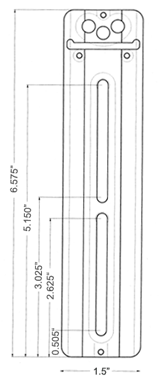

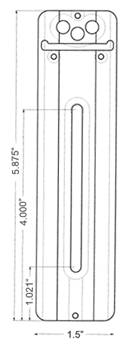

Line drawings of Wimberley P-50 Lens Plate with with inch dimensions Line drawings of Wimberley P-40 Lens Plate with with inch dimensions Line drawings of Wimberley P-30 Lens Plate with with inch dimensions Line drawings of Wimberley P-20 Lens Plate with with inch dimensions Line drawings of Wimberley P-10 Lens Plate with with inch dimensions
