C-12 Installation Instructions: Really Right Stuff BH-40

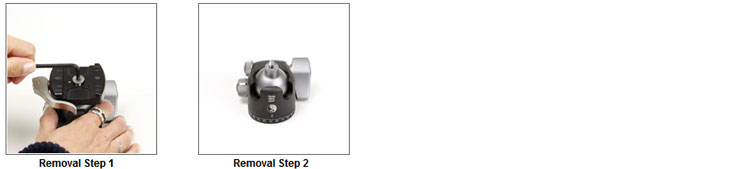

Removing the Existing Clamp:

Remove the clamp's central fastener using the enclosed 5/32 hex key. Removal Complete.

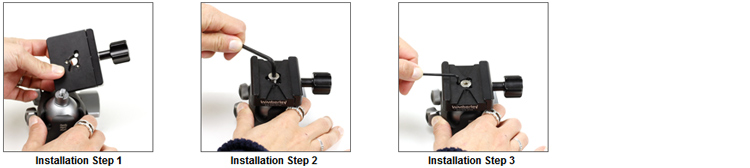

Installing the C-12:

Seat the clamp on the stem of the ball head. Make sure the raised key on the stem of the head is seated in the recessed slot on the bottom of the clamp.

Fasten the clamp to the ball head using the enclosed 1/4-20 fastener. Use the enclosed 5/32 Hex key to tighten the screw very snugly (lock down the ball head and give it some muscle). Tighten the three set screws firmly using the 2.5mm hex key.

C-12 Installed:
