Manfrotto 210B/JC03
(Click on Image to Enlarge)





Wimberley Clamp to Install:



The C-10 clamp (2.5" in length) with hardware can be used for retrofitting specific models of Cambo, FLM, Giottos, Gitzo, Kaiser, Manfrotto, and Novoflex ball heads.



  Hardware/Tools Included
-Reducer Bushing - 3/8-16 to ¼-20 (Brass)
-Set Screw - 1/4 X .375
-Hex Key - 1/8

C-10 ($79.00)

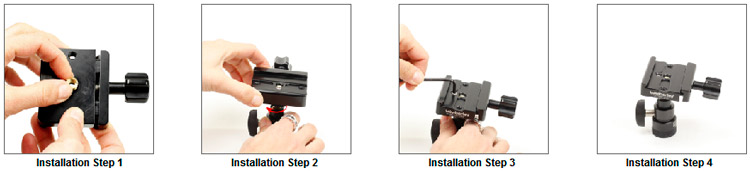

Retrofit Instructions:

Leave "as is" . No removal is neccessary.


Screw the brass bushing into the clamp's central hole. (This reduces the threaded hole from 3/8-16 to 1/4-20). Screw the quick-release clamp onto the ball head mounting platform as tightly as possible. Tighten the 1/4" set screw firmly using the enclosed 1/8" hex key. Installation complete
