Wimberley Professional Photo Gear - Cambo CBH-5

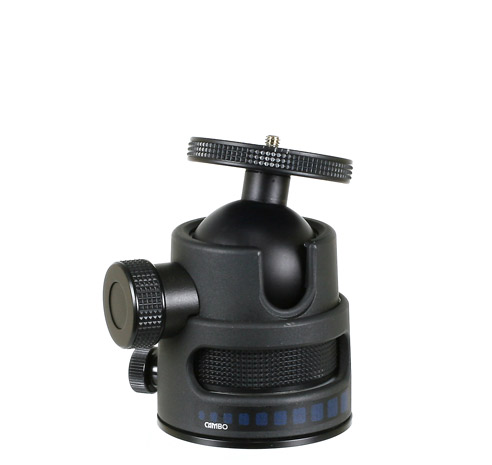

Cambo (CBH-5)

(Click on Image to Enlarge)

Wimberley Clamp to Install:

The C-10 clamp (2.5" in length) with hardware can be used for retrofitting specific models of Cambo, FLM, Giottos, Gitzo, Kaiser, Manfrotto, and Novoflex ball heads.

Hardware/Tools Included
-Reducer Bushing - 3/8-16 to ¼-20 (Brass)
-Set Screw - 1/4 X .375
-Hex Key - 1/8

C-10 ($79.00)

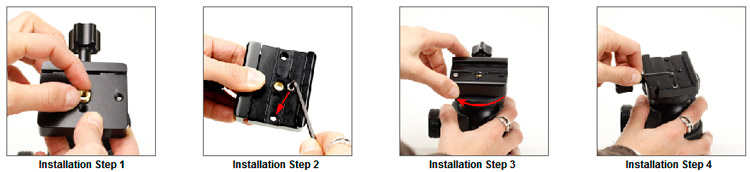

Retrofit Instructions:


Leave "as is" . No removal is neccessary.


Screw the brass bushing into the clamp's central hole. (This reduces the threaded hole from 3/8-16 to 1/4-20).	Use the 1/8" hex key to remove the set screw from the original location near the center of the clamp, and install (using hex key) into one of the outer holes.	Screw the quick-release clamp onto the ball head mounting platform as tightly as possible.	Tighten the 1/4" set screw using the enclosed 1/8" hex key.
